防水熱縮中接端子
防水熱縮中接端子
應用
HSC是由聚烯烴和熱熔膠復合而生成的熱收縮套管，用于保護連接、防水防腐蝕，可以在粗糙的環境中加強固定和防震動，具有很好的絕緣保護電子連接器的功能。與常規的連接器相比，具有耐久性、易于安裝、安裝成本低的優勢。
特性
收縮率3：1
優異的防水性能
材料優異的延伸性能，抗機械損害
透明度佳，提高更好的抗拉力
高彈性能，管材不易變形
操作溫度范圍
操作溫度: -55℃～125℃
開始收縮溫度: 80℃
最低完全收縮溫度: 130℃
性能參數
Test Item | Characteristics | Test condition | |
Unaged | Tensile strength | Min. 16MPa | Room temp. |
Elongation | Min. 200% | ||
Aged | Tensile strength | Min. 11.5MPa | 136℃/7 days |
Elongation | Min. 100% | ||
Voltage withstand and breakdown Voltage(Unaged) | Withstand 2.5 KV for 1minute and breakdown | Room temp. | |
Voltage withstand and breakdown Voltage(Aged) | Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage | 136℃/7 days | |
Copper corrosion | No corrosion of bare copper | 136℃/7 days | |
Copper stability | No sign of degradation Min.Elongation 100% | 136℃/7 days | |
Cold bend | No crack | -30℃/4 hrs | |
Maximum secant modulus(2%) | 250 MPa | - | |
Volume resistivity | Min.1014Ω-cm | - | |
Heat shock | No crack | 200℃/4 hrs | |

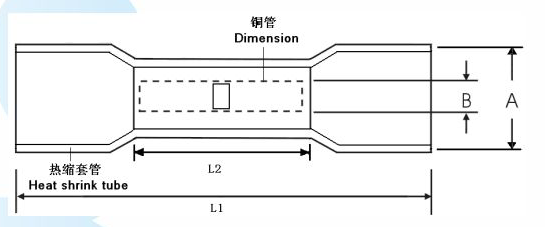

產品規格
Part. No |
Wire Range |
Dimension（mm） | Heat shrink tube（mm） |
Insulator |
Color |
Approval | |||||
A.W.G | mm2 | OD | B | L2 | OD | A | L1 | ||||
HSC-0.5 | 26-22 | 0.2-0.5 | 2.1 | 1.3 | 10 | 4.1 | 3.2 | 26.0 | PE | Yellow | RoHS |
HSC-1 | 22-18 | 0.5-1.0 | 3.3 | 1.7 | 15 | 5.9 | 4.7 | 36.0 | PE | Red | RoHS |
HSC-2 | 16-14 | 1.5-2.5 | 4.0 | 2.4 | 15 | 7.1 | 5.7 | 36.0 | PE | Blue | RoHS |
HSC-3 | 12-10 | 4.0-6.0 | 5.5 | 3.5 | 15 | 8.0 | 6.7 | 42.0 | PE | Yellow | RoHS |
HSC-3.5 | 14-12 | 2.5-4 | 5.5 | 4.1 | 20 | 7.8 | 6.5 | 38 | PE | Black | RoHS |
HSC-3.5(薄) | 14-12 | 2.5-4 | 5.4 | 4.3 | 15 | 7.8 | 6.5 | 38 | PE | Black | RoHS |
HSC-8 | 8 | 10 | 7.0 | 5.8 | 21 | 9.5 | 8.0 | 42.0 | PE | Yellow | RoHS |
