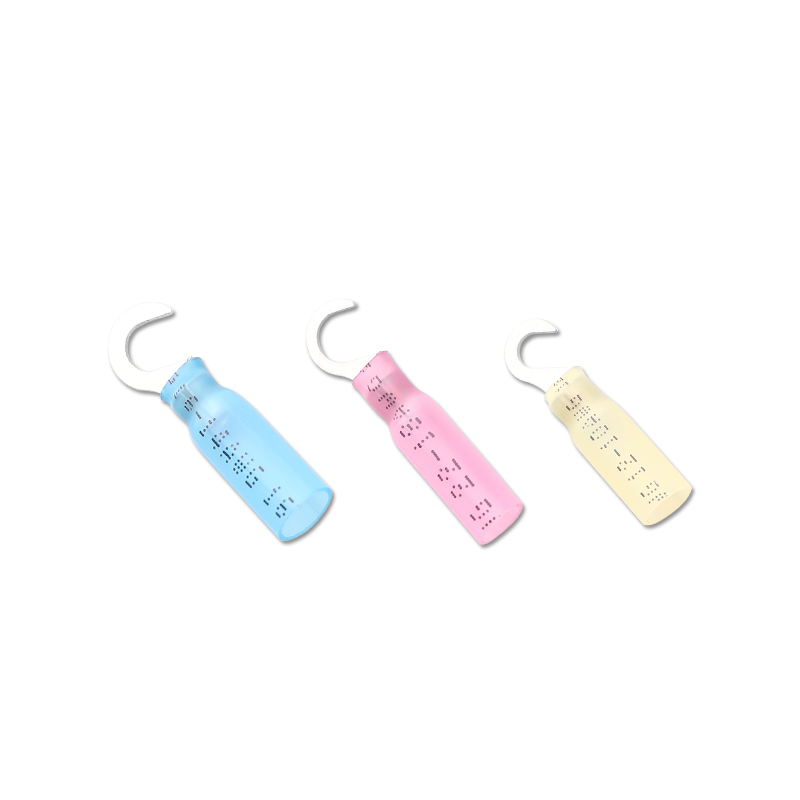

熱縮鉤形端子
熱縮鉤形端子
應用
HSHVT是由聚烯烴和熱熔膠復合生產而成的熱收縮套管，用于保護連接、防水防腐蝕，可以在粗糙的環境中加強固定和防震動，具有很好的絕緣保護電子連接器的功能。與常規的連接器相比，具有耐久性、易于安裝、安裝成本低的優勢。
特性
收縮率3：1
材料優異的延伸性能，抗機械損害
透明度佳，提高更好的抗拉力
高彈性能，管材不易變形
操作溫度范圍
操作溫度: -55℃～125℃
開始收縮溫度: 80℃
最低完全收縮溫度: 130℃
性能參數
Test Item | Characteristics | Test condition | |
Unaged | Tensile strength | Min. 16MPa | Room temp. |
Elongation | Min. 200% | ||
Aged | Tensile strength | Min. 11.5MPa | 150℃/7 days |
Elongation | Min. 100% | ||
Voltage withstand and breakdown Voltage(Unaged) | Withstand 2.5 KV for 1minute and breakdown | Room temp. | |
Voltage withstand and breakdown Voltage(Aged) | Withstand 2.5 KV for 1minute and breakdown at least half of unaged breakdown voltage | 150℃/7 days | |
Copper corrosion | No corrosion of bare copper | 150℃/7 days | |
Copper stability | No sign of degradation Min.Elongation 100% | 150℃/7 days | |
Cold bend | No crack | -40℃/4 hrs | |
Maximum secant modulus(2%) | 250 MPa | - | |
Volume resistivity | Min. 1014Ω-cm | - | |
Heat shock | No crack | 200℃/4 hrs | |
產品規格
Part. No |
Wire Range |
Stud Size(mm) | （mm） | Length（mm） |
Insulator |
Color | ||||
A.W.G | mm2 | Size | d | d2 | D | W | L | |||
HV 1.25-5 | 22-18 | 0.5-1.0 | #10 | 1.5 | 5.3 | 4.7 | 8.0 | 32 | PE | Red |
HV 2-5 | 16-14 | 1.5-2.5 | #10 | 2.4 | 5.3 | 5.7 | 9.5 | 33 | PE | Blue |
HV 5.5-5 | 12-10 | 4.0-6.0 | #10 | 3.4 | 5.3 | 6.7 | 9.5 | 38 | PE | Yellow |
